Fast, up to 150 amps of output
Light weight < 100 kg
Charge 2 vehicles simultaneously
10" touchscreen display
Fast communications via integrated 4G and Wi-Fi connectivity
Wall mount or pedestal with optional cable management
Commercial
Public

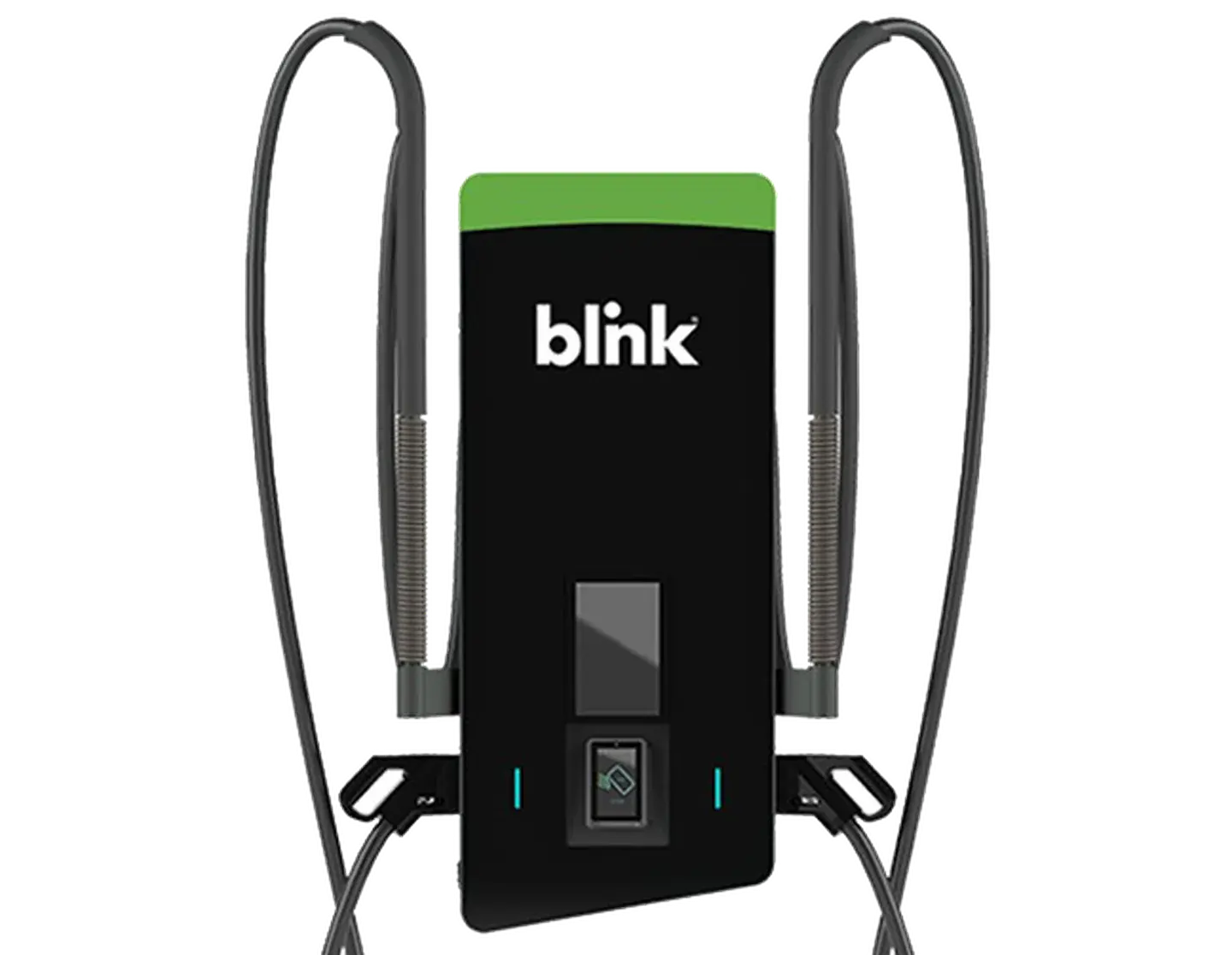

50kW DC Fast Charger
DC
Blink’s DC 50kW is designed to be the perfect balance of power and flexibility in a compact charging solution. With a capacity of up to 150 amps and weighing only about 100 kg, the 50kW DC fast charger makes it possible to charge two electric vehicles simultaneously and share power for efficient charging. Designed to save costs and provide flexibility, with a modular design that can be installed indoors or outdoors. The DC Wall 50kW has two CCS charging ports and can be started via RFID charge card.
CCS1
CCS2
Product Details
| Maximum Power | |
|---|---|
| INPUT VOLTAGE RANGE (I-I, RMS VALUE) | 323V – 552V |
| MAX. INPUT CURRENT (CONT., RMS) | 92A |
| OUTPUT CHARACTERISTICS | 50kW when charging one vehicle 2 x 25kW in parallel charging mode of 2 vehicles |
| MAX. OUTPUT CURRENT | 150A when charging one vehicle (1 x 50kW) 75A in parallel charging mode of 2 vehicles (2x 25kW) |
| OUTPUT DC VOLTAGE RANGE | 50V - 1000V |
Product Documentation
Product Sheet
.Specification Sheets
All the power you need from one unit
COMPACT
Blink’s new DC Fast Wall 50kW charger has a compact and lightweight design that combines power with flexibility for easy installation.
POWERFUL
With up to 150 Amps of output and only weighing about 220 lbs, charge two vehicles simultaneously while efficiently sharing power.
VERSATILE
The DC Fast Wall 50kW fits into any surroundings.
Blink 50kW DC Fast Charger
Balance Power and Flexibility

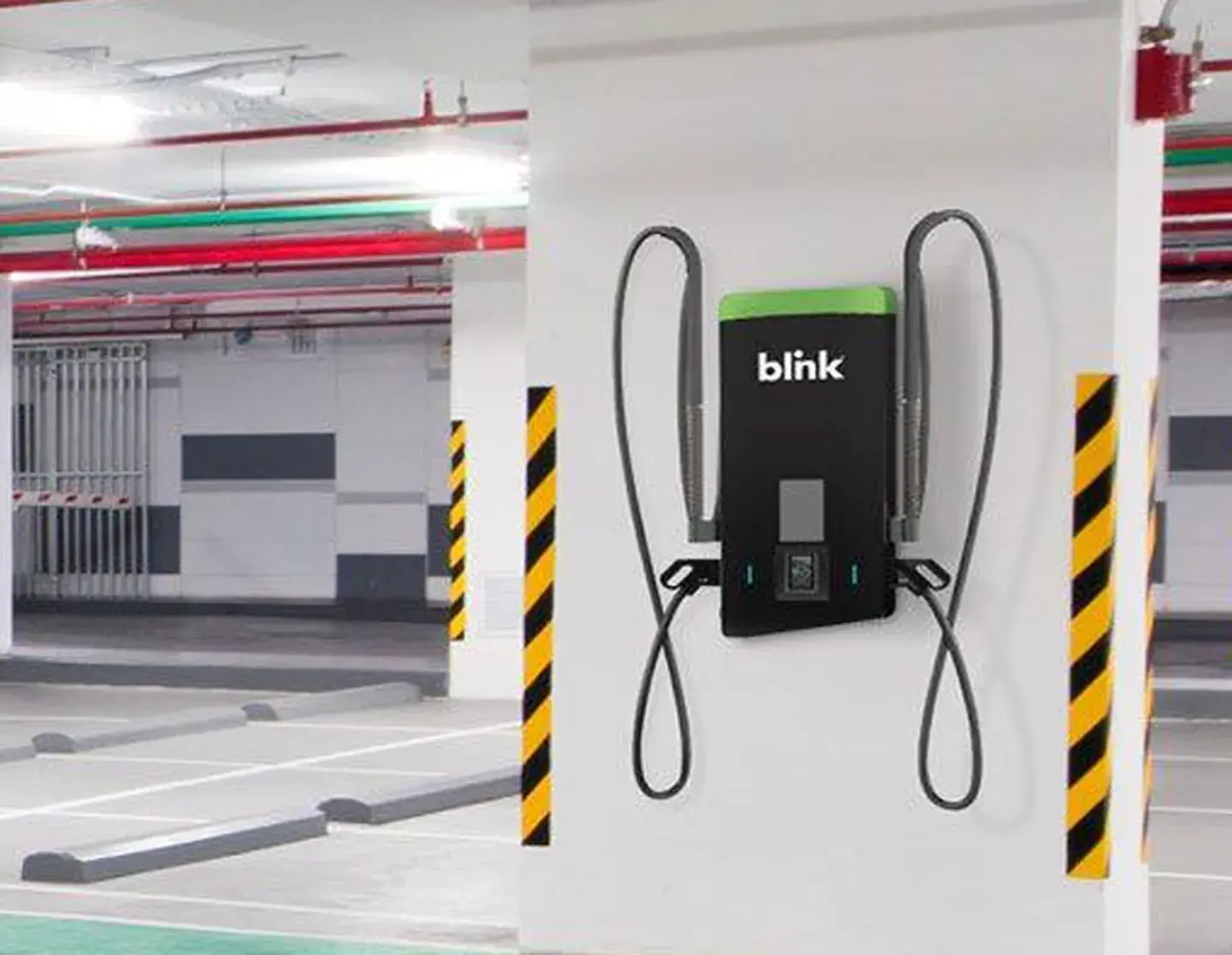

The DC Fast Wall 50kW fits any environment. Wall-mounting and pedestal installations are available, with optional cable management solutions. Boasting a robust remote management tool with real-time charging activity and customized reporting. A fast solution that puts a location on all EV driver’s maps and can be found with the click of a button.
Ready to design your EV Charging solution?
Learn how the Blink 50kW DC fast charger can attract new customers that stay longer and visit your business more frequently.
