Power configurable up to 30kW
Cellular 4G LTE, Wi-Fi and ethernet connection
Easy to read high-resolution 7" LCD

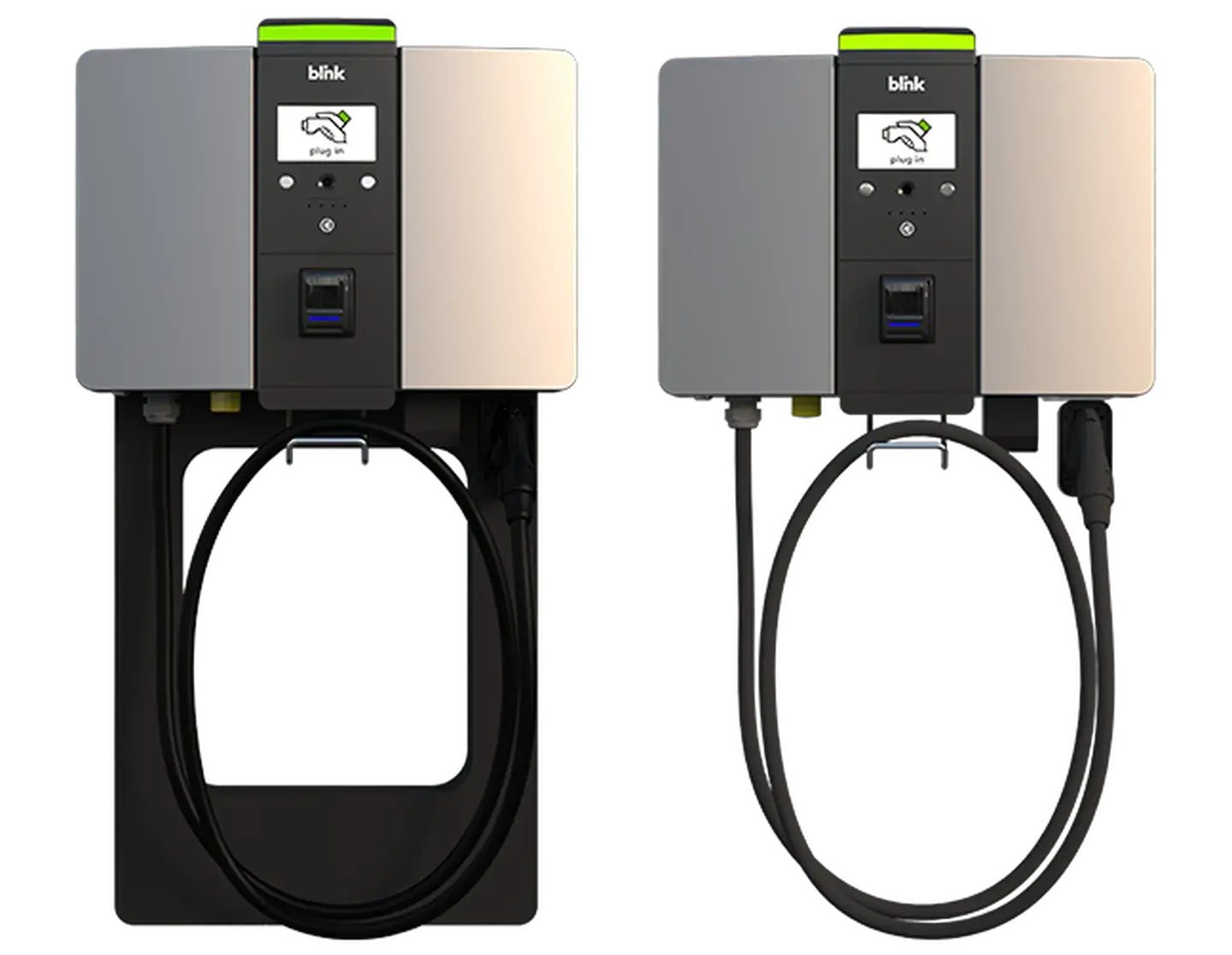

Wall and pedestal mounting options
Credit card reader for quick and easy charging
Plug & Charge ISO 15118 (hardware-ready – Coming 2024)
Commercial
Series 9 Charging Solutions - Blink Charging (India)
DC
The Blink Series 9 DCFC is fast and flexible, offering up to 30kW of power and multiple connection and mount options. Sleek, modern and compact this DCFC is suitable for different types of locations and footprints and offers curb appeal.
CCS2
Product Details
| Product | Series 9 - 30kW DCFC |
|---|---|
| Output Power | Up to 30kW Max |
| Output Current | Configurable up to 60A Max |
| Output Voltage | 150 ~ 1000 VDC |
| Input Power | 32 kVA Max |
| Input Current | 3-phase: 38A Max |
| Input Voltage | 3-phase: 480Y/277 VAC |
| Data Communication | Cellular 4G LTE, Wi-Fi, Ethernet |
Product Documentation
Product Sheet
Product Manual
Specification Sheet
convenient and compact DCFC
Fast Charging
30kW of power provides a fast charge for EV drivers, getting them back on the road quickly, ideally in high-traffic locations.
Flexible
Multiple mounting options provide site hosts reduced set-up costs and easy installation, helping to get locations operating in no time.
Sleek Design
With a modern and compact design, the Blink Series 9 DCFC brings curb appeal to commercial areas looking to add EV charging solutions.

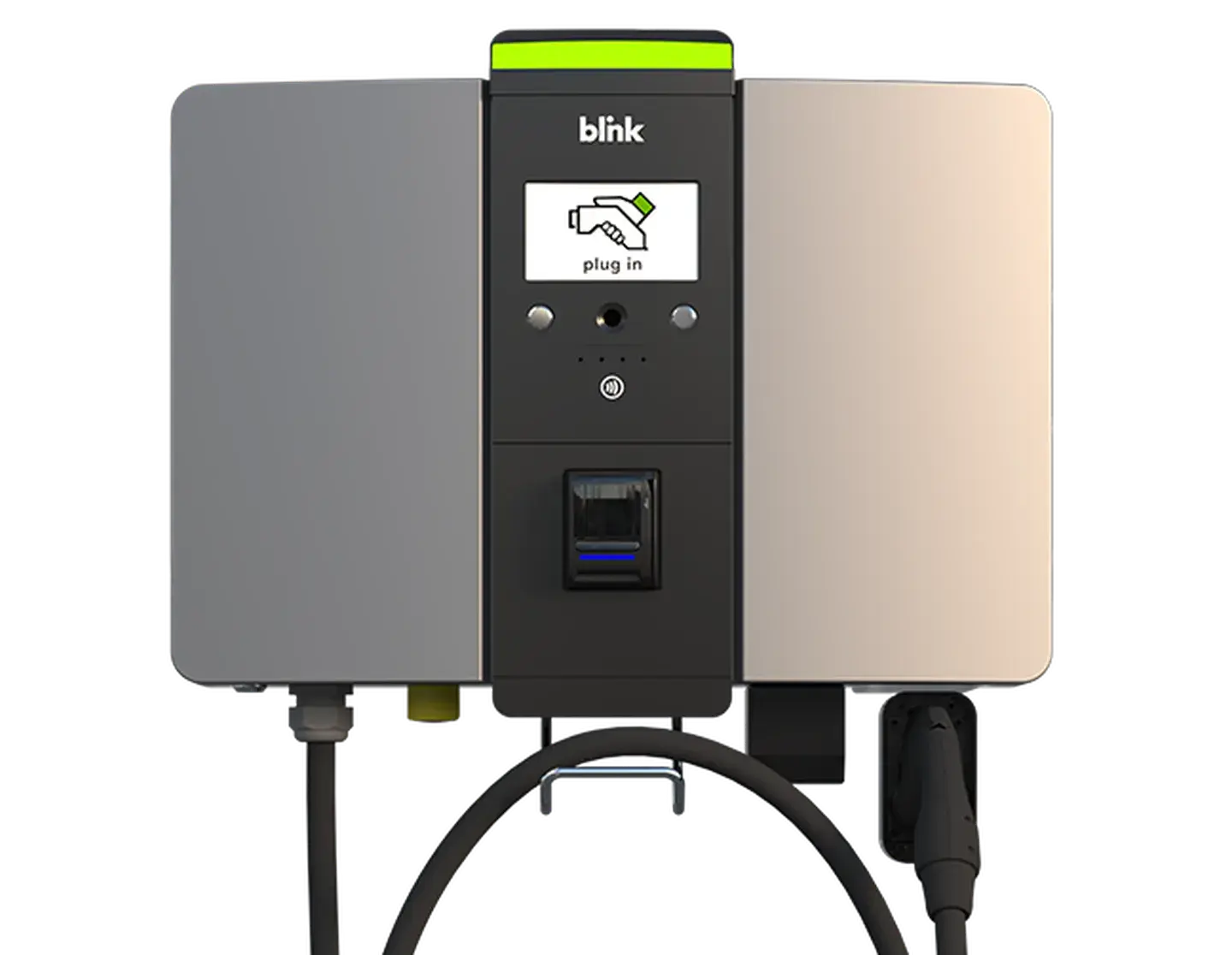

Blink Series 9 DCFC
Powerful DC Fast Charging
The Blink Series 9 DC Fast Charger is a flexible charging station designed for speed and reliability. With the perfect balance of size and power, it provides up to 30kW of power and offers multiple mounting options to fit any desired location.
"Installing EV chargers is part of our commitment to reduce our environmental impact on the communities where we operate. They also provide our customers with easy and reliable access to EV charging to get to their next destination.”
John Robbins
Senior Managing Director of Granite Properties
Ready to design your EV Charging solution?
Learn how the Blink Series 9 DC fast charger can attract new customers that stay longer and visit your business more frequently.
