Commercial

Hypercharger 400kW

DC
AC

FOR EUROPEAN MARKETS — The Blink Hypercharger 400kW fast chargers are powerful. Up to three charging points can be set up in your charger configuration, for both AC and DC plugs – you can choose between CCS2, CHAdeMO, GB/T, Type 2 and even IEC charging connection options. Its future-proof design allows for scalable configurations and an output of 150 to 1000 volts. Safety features protect the station with an external emergency stop switch, crash sensors, door sensors and an optional emergency stop button. The Blink 400kW fast charger is seamlessly connected using the Blink Network and with 4G/3G/2G connections.

CHAdeMo
Type 2
CCS2
Key Features
  • Up to 1200A output current

  • 100kW power stacks

  • Voltage range of 150V to 1000V

  • Parallel DC charging of up to 3 cars

Product150kW400kW
Max Current Rating117 A, 80kW @ 75kW DC output power 233 A, 160kW @ 150kW DC output power600A
Max Charging Power75 kW (one Power-Stack), max. 250A 150 kW (two Power-Stacks), max. 500A100 kW (one Power-Stack), max. 300A 200 kW (two Power-Stacks), max. 600A 300 kW (three Power-Stacks), max. 600A 400 kW (four Power-Stacks), max. 600A
Voltage Rating3x 230 V (400 V) / 50 Hz380 V / 400 V / 480 V
Optional AC Sockets11
Connectivity2G/3G/4G GSM-/CDMA modem, 10/100Base T EthernetLTE/UMTS/GSM Modem 4G/3G/2G 10/100Base-T Ethernet

All the power you need from one unit

Multi-purpose

DC fast chargers that are multi-purpose and can charge up to three cars simultaneously, with a variety of available plugs and amperage options.

Sustainable

Durable design and high efficiency ensure vehicles can quickly and easily recharge while minimizing their environmental impact.

Powerful

The Blink 100kW to 400kW DC fast charging station is a powerful charging charger capable of stacking power output over multiple units.

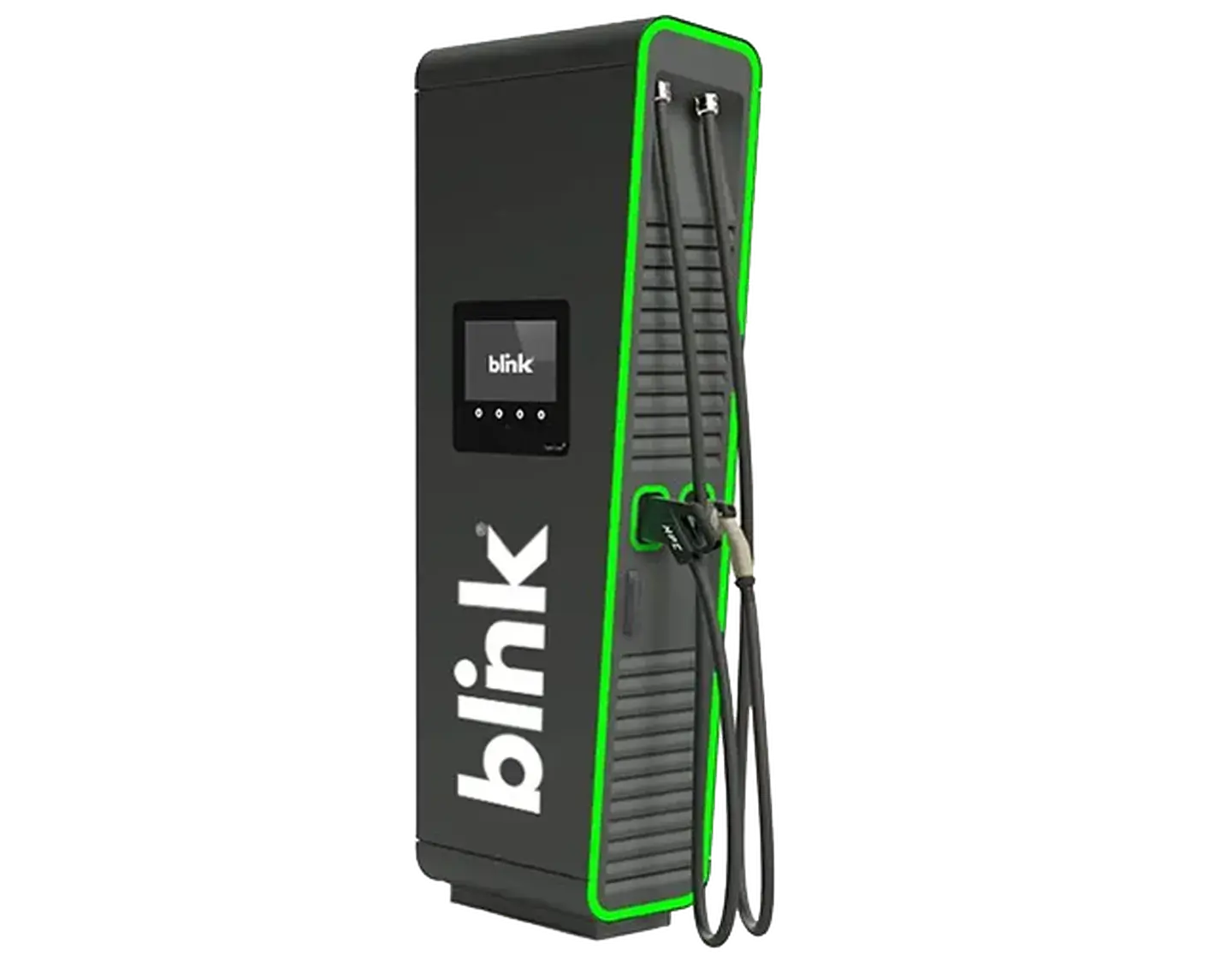

Blink 100kW - 400kW DC Fast Charger

Fast and Efficient EV Charging

The Blink is a fast-charging solution with professional-grade features. It can charge three cars simultaneously with connection options like CCS2 and CHAdeMO. It performs well in all weather conditions and offers a powerful output of 500 Ampere, making it a top choice for eco-conscious consumers. With voltage ratings of 380 Q / 400 Q / 480 Q and dimensions of 732 x 2235 x 663 mm, it operates in MODE 4 with DC charging mode. It can deliver a maximum power of 400 kW, supporting a max current rating of 600 A. The Hypercharger 400kW is efficient and ready for 600 A with its floor mounting option.


“These new fast-charging options will enable more EV travel options. Now is a great time to make the switch."

David Roberts,

Drive Electric Vermont coordinator

Ready to design your EV Charging solution?

Learn how the Blink 100kW-400kW DC fast charger can attract new customers that stay longer and visit your business more frequently.
