Modular DC fast charging with power output from 50 kW to 400 kW
Dynamic power sharing across multiple charging outlets
Compact, space-efficient cabinet design for tight installation areas
7" touchscreen interface for easy user interaction and real-time status updates
Ergonomic cable management with 4–7 m spring-supported cables
Optional integrated payment terminals
Weather-resistant and durable enclosure suitable for outdoor environments
Scalable architecture to expand as demand grows
OCPP 1.6J and OCPP 2.0.1 compliant
Commercial
All-In-One Station Charger
DC

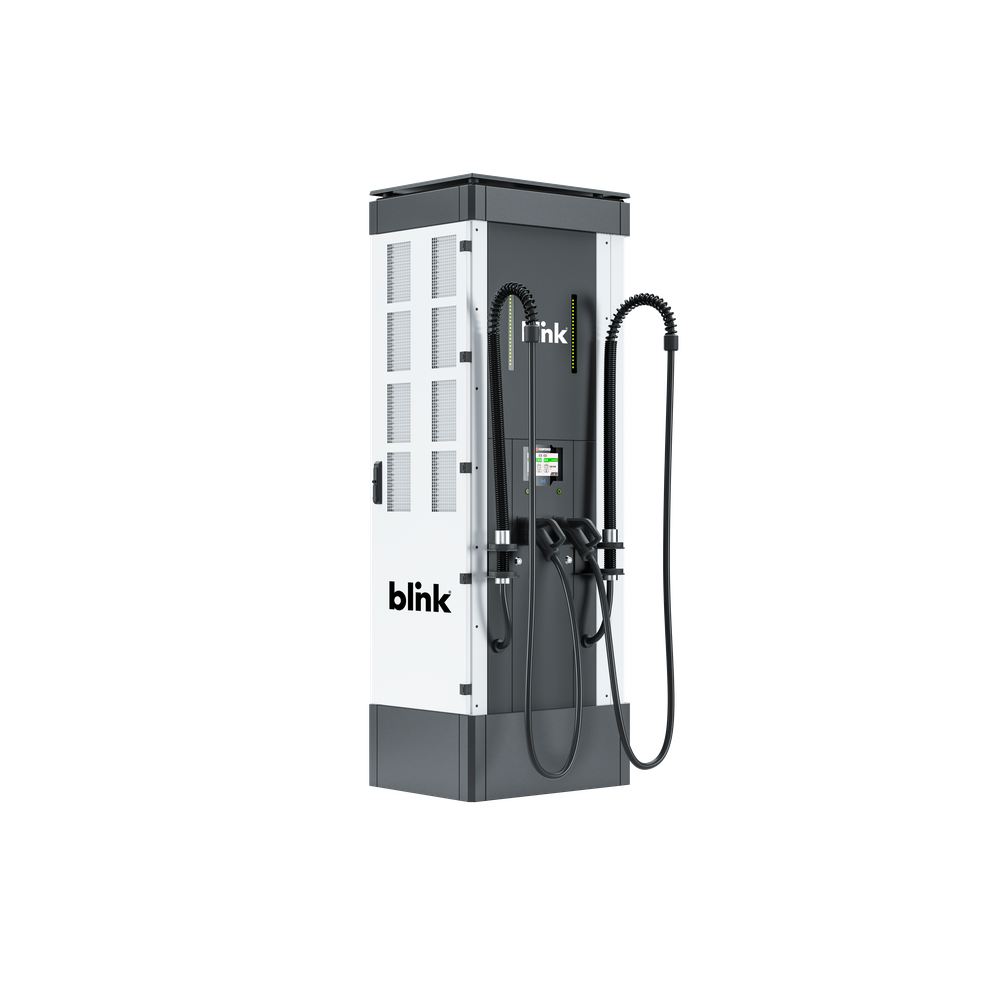

The All-In-One Station Charger is a modular, high-performance DC solution available in single or double cabinet configuration, offering flexible power delivery from 50kW up to 400kW. Its compact, durable design includes intuitive features like ergonomic cable management, a 7″ touchscreen, and optional payment terminals. The system is compact, making it easy to install in tight spaces and scalable to meet growing charging demands.
CCS1
NACS
Models
| Version | All-In-One Station Charger Specifications |
|---|---|
| Number of Ports | One or Two |
| Output Current | Up to 300 A |
| Output Power | 50 - 400 kW |
| Output Voltage | 150–920 VDC |
| Input/Voltage | 480 VAC ±6% |
| Charging Connector | CCS1, NACS |
| Input Voltage | 480 VAC ±6% |
| Connectivity | Cellular 4G LTE, Wi-Fi, Ethernet |
Product Documentation
Spec Sheets
Convenient and Compact DCFC
Fast Charging
400kW of power provides a fast charge for EV drivers, getting them back on the road quickly, ideal in high-traffic locations.
Serviceability
Accessibility and a modular design, the All-In-One Station Charger makes maintenance and upgrades easy.
Sleek Design
With a modern and compact design, the All-In-One Charger brings curb appeal to commercial areas looking to add EV charging solutions.
All-in-One Station Charger
Powerful DC Fast Charging
The All-In-One Station Charger is a modular, high-performance DC fast charger built for flexibility and scalability. It delivers adjustable power output ranging from 50 kW up to 400 kW, making it suitable for a wide variety of charging needs. Its dynamic power-sharing capability intelligently distributes available power between multiple charging outlets to maximize efficiency and reduce wait times. The compact and weather-resistant cabinet is designed to fit in tight or space-constrained environments, making it ideal for urban settings and high-traffic areas. Users benefit from intuitive features like a 7-inch touchscreen interface for easy operation and clear charging status updates. Ergonomic cable management with spring-supported cables ranging from 4 to 7 meters improves usability and reduces wear on components. Optional payment terminals can be integrated directly into the unit, supporting seamless transactions in public charging settings.
"Installing EV chargers is part of our commitment to reduce our environmental impact on the communities where we operate. They also provide our customers with easy and reliable access to EV charging to get to their next destination.”
John Robbins
Senior Managing Director of Granite Properties
Ready to design your EV Charging solution?
Learn how the Blink All-In-One Station EV charger can attract new customers that stay longer and visit your business more frequently.
