DC Distributed System
DC

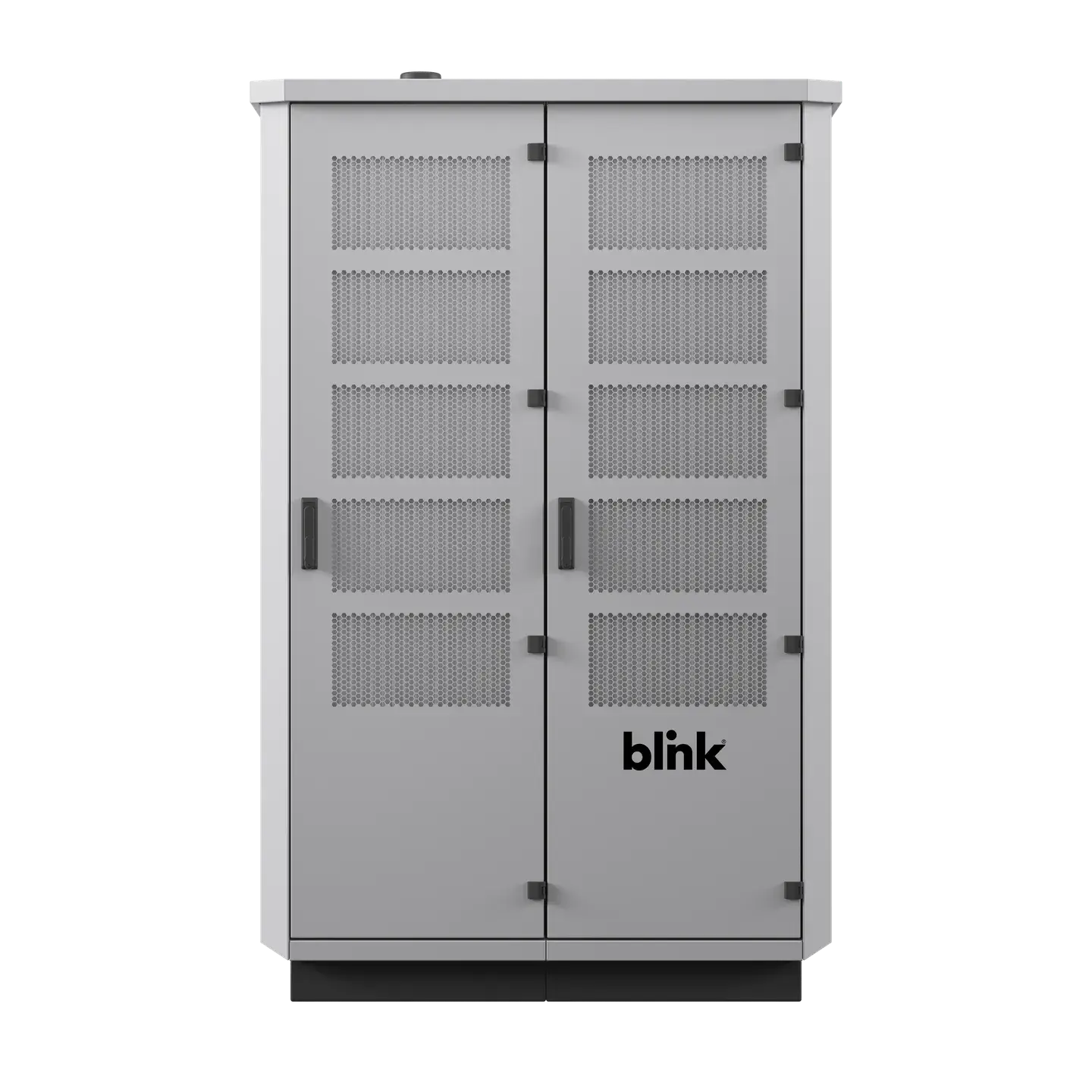

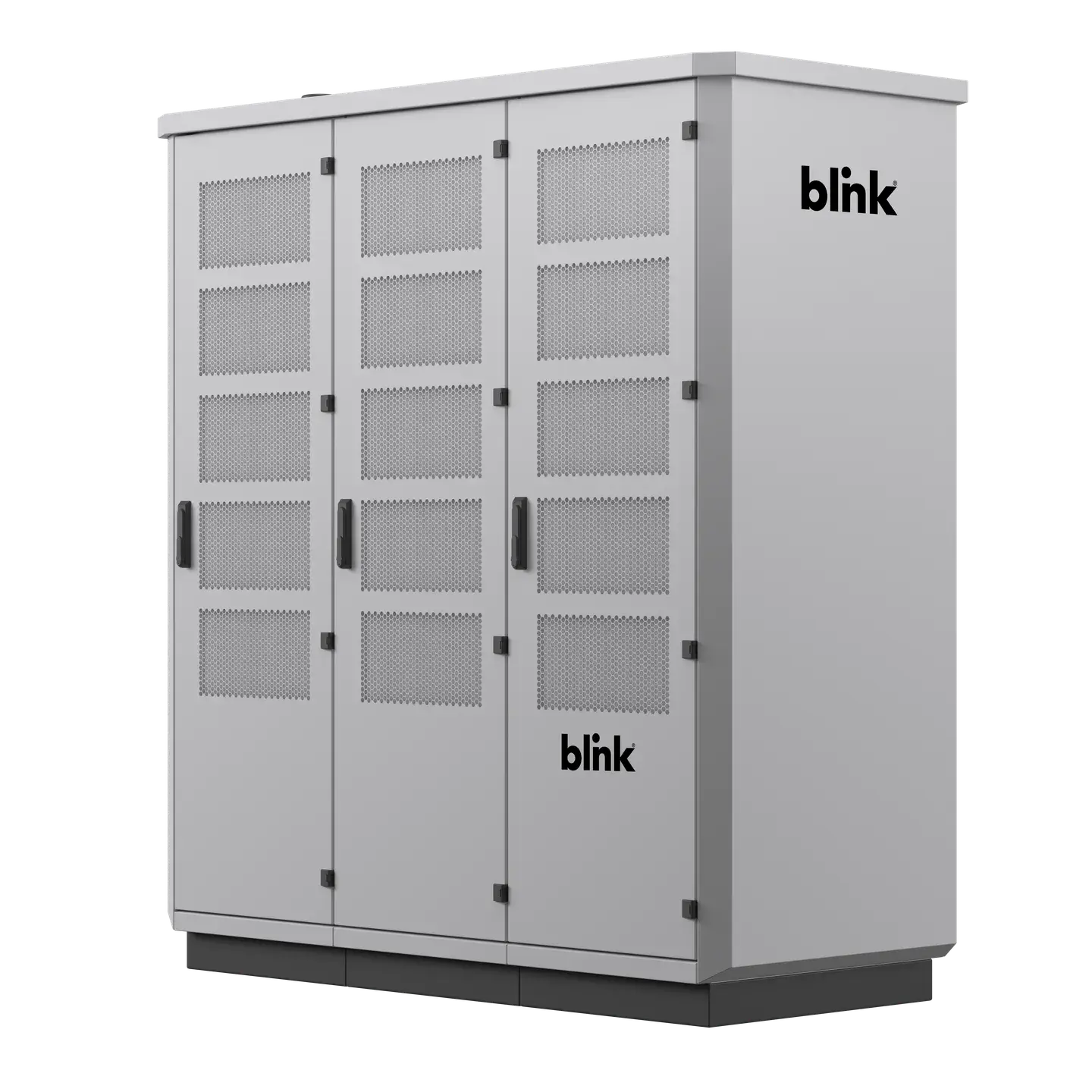

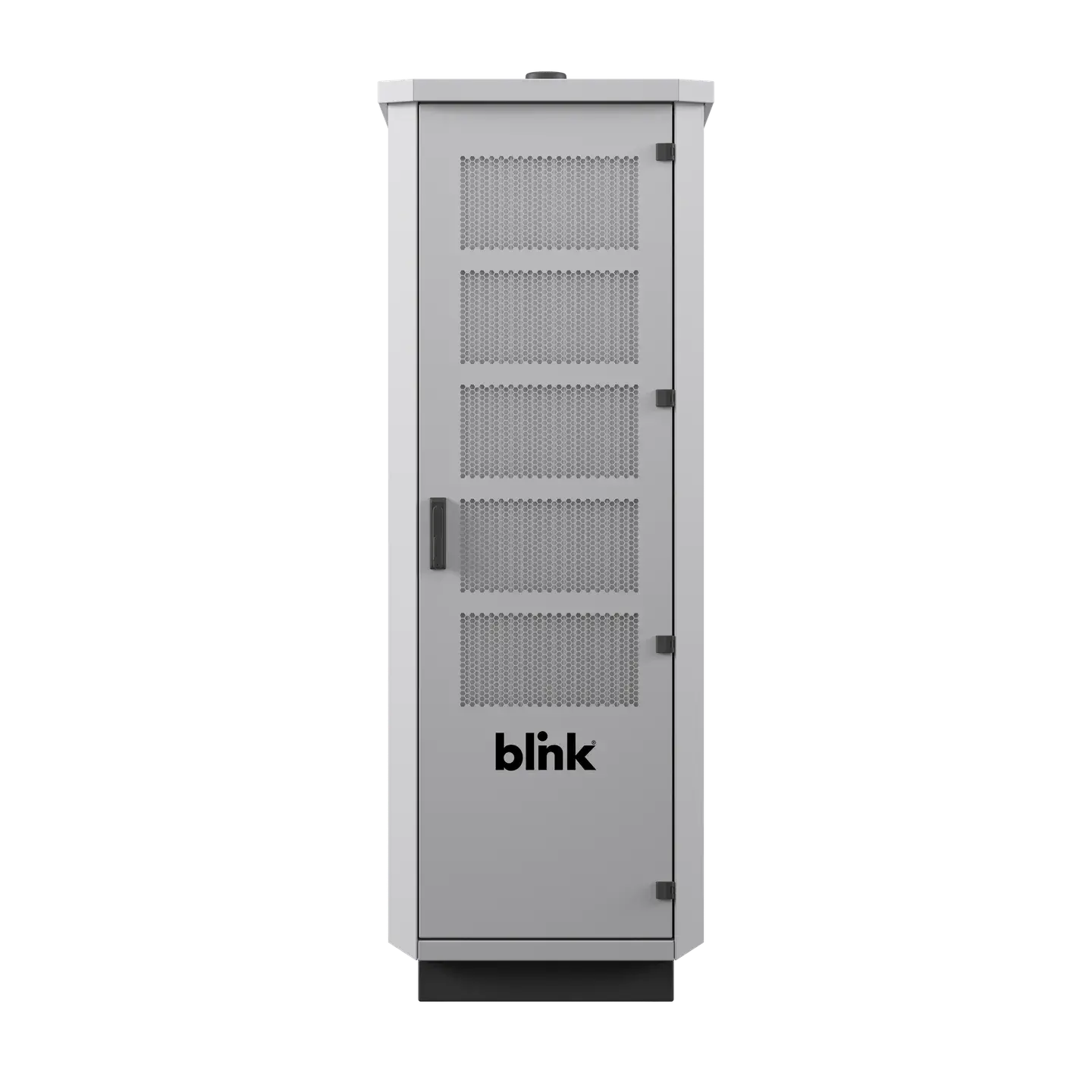

Our DC Distributed System solutions are flexible, modular and scalable, delivering up to 600kW of total charging power. These systems consist of power units and dispensers. Available in single, double or triple cabinet configurations, each power unit is capable of supplying 1-12 charging points. This system can support up to 8 dispensers.
CCS1
NACS
Models
| Version | DC Distributed System Specifications |
|---|---|
| Number of Ports | One or Two |
| Output Current | Up to 400A nominal, 600A with boost |
| Output Power | Up to 500kW |
| Output Voltage | 150 - 500 VDC without adaptive voltage 150 - 1000 VDC with adaptive voltage |
| Input Voltage | Max. 1000VDC |
| Charging Connector | CCS1, NACS |
| Connectivity | Cellular 4G LTE, Wi-Fi, Ethernet |
Product Documentation
Convenient and Compact DCFC
Fast Charging
Power units delivering up to 600kW of power provide a fast charge for EV drivers, getting them back on the road quickly, ideal in high-traffic locations.
Practical

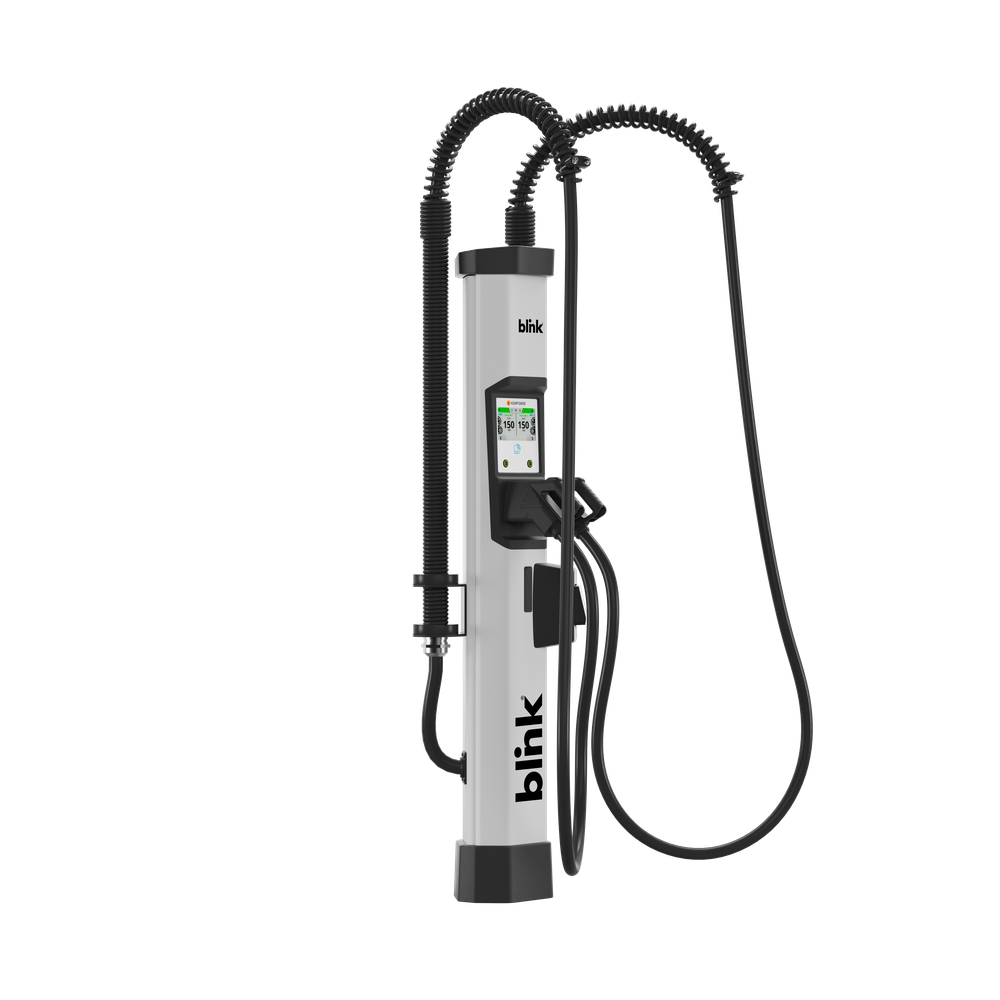

Dual-port dispenser designed for simultaneous and non-simultaneous charge.
Sleek Design
With a modern and compact design the dispensers bring curb appeal to commercial areas looking to add EV charging solutions.

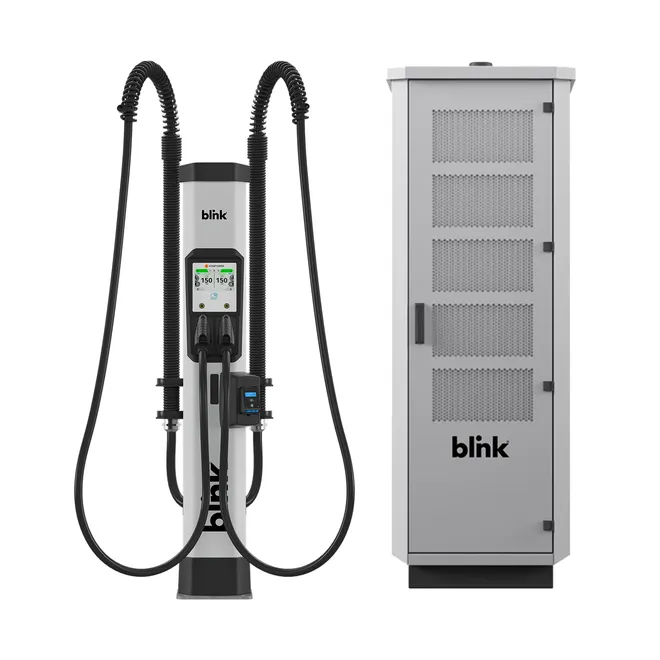

DC Distributed system
Scalable DC Fast Charging
The DC Distributed charging system is a smart, scalable EV charging solution. At its core is a centralized power unit that dynamically distributes energy to multiple satellite charging points, enabling simultaneous or non-simultaneous charging without overloading the grid. Its modular design makes installation simple and allows for easy expansion and scalability. With streamlined power management, reduced infrastructure costs, and built-in readiness for energy optimization, these DC Distributed Systems deliver high-performance charging and user experience.
"Installing EV chargers is part of our commitment to reduce our environmental impact on the communities where we operate. They also provide our customers with easy and reliable access to EV charging to get to their next destination.”
John Robbins
Senior Managing Director of Granite Properties
Ready to design your EV Charging solution?
Learn how the Blink DC Distributed System can attract new customers that stay longer and visit your business more frequently.
