Single and dual-port design
Rugged aluminum enclosure for durability
Configurable up to 80A max via built-in derating switch
Seamless data communication: Wi-Fi, built-in Ethernet port, and 4G LTE cellular
Sleek and compact head unit, pedestal, and cable management system
New terminal block supporting #2 AWG input cabling for simple installation
ISO 15118 hardware-ready
Easy-to-read LCD screen for clear charging session information
Universal J1772 and NACS connectors for compatibility with all-electric and plug-in electric hybrid vehicles*
Bright status LED indicator lights.
Pedestal and wall mount options for flexible installation
Commercial
Series 7 (ISO Model) EV Charging Station
Level 2
The Series 7 Charging station is easily configurable up to 80A per port, is available in both single and dual models and offers multiple connectivity options, making it an ideal solution for multiple applications. This Series 7 charging solution features multiple connectivity options, adjustable power, and ISO 15118 hardware-readiness.
J1772
Models
| Version | Series 7 ISO Model (80A) |
|---|---|
| Number of Ports | One or Two |
| Output Current | Configurable up to 80A per port |
| Output Power | Up to 19.2kW (@240VAC) or 16.64kW (@208VAC) max per port |
| Charging Connector | J1772 or NACS |
| Input/Voltage | 208/240VAC |
| Connectivity | Cellular 4G LTE, Wi-Fi, Ethernet |
| Backend Protocol | OCPP 1.6J compliant |
| Authentication | RFID: ISO14443 Type A & B, MiFare, Felica, ISO15693, NFC: Apple VAS, NEMA, Google |
| Smart Tap, Plug and Charge | ISO 15118 ready |
| Payment | RFID card, Mobile app, or Credit Card via IVR |
Product Documentation
Product Sheets
Product Manual
Charging your business or fleet
Practical

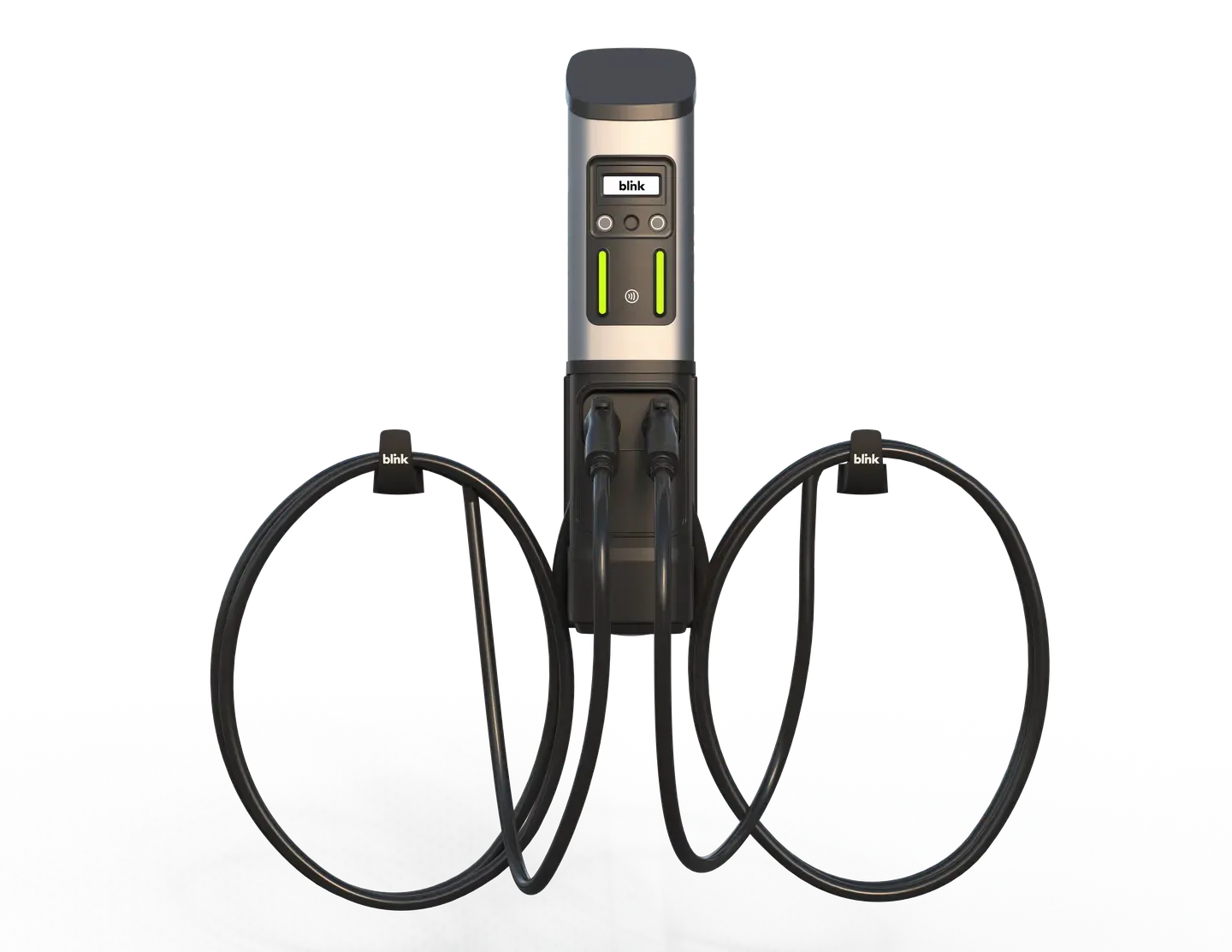

Dual-port design for two vehicles to simultaneously charge.
Powerful
Configurable up to 80A Max per port to meet different customer needs.
Flexible
Pedestal and wall mounting options offer flexibility for different types of locations.
BLINK SERIES 7
Flexible Level 2 EV Charging
The Blink Series 7 charging stations are powerful enough to charge your fleet or multi-unit property. They are fast Level 2 AC chargers featuring up to 80 amps of power to get your vehicles on the road quickly. With a dual-port design, the Blink Series 7 allows two vehicles to charge simultaneously on the Universal J1772 plugs – able to charge all-electric or plug-in hybrid EVs (Tesla vehicles require an adapter). The NEMA 3R outdoor-rated enclosure allows flexible installation options, indoors or outdoors, with a compact form that allows for ideal placement, mounted on a wall or pedestal. Standard 18-foot charging cables (or the optional 25-foot upgrade) can reach around any vehicle or between parking spaces. When connected to the Blink Network over 4G LTE they are unlocked to allow for advanced charger management capabilities such as the groups feature with customized charging policies, remote monitoring with 99% uptime, and 24/7 customer support for employees or residents.
