Available in Dual Port.
Payment options: Google Pay, Apple Pay, RFID cards, all major credit cards, and Tap to Pay
Rugged aluminum enclosure for durability
Configurable up to 80A max via built-in derating switch
Seamless data communication: Wi-Fi, built-in Ethernet port, and 4G LTE cellular
Sleek and compact design with optional cable management system available.
New terminal block supporting #2 AWG input cabling for simple installation
ISO 15118 hardware-ready
Easy-to-read LCD screen for clear charging session information
Universal J1772 and NACS connectors for compatibility with all-electric and plug-in electric hybrid vehicles*
Bright status LED indicator lights
Pedestal and wall mount options for flexible installation
Commercial
Series 8 (ISO Model) EV Charging Station
Level 2
The Series 8 charging station is designed for applications where drivers are likely to pay with a credit card, making it perfect for commercial settings including shopping malls, hospitals, municipal parking, and retail locations. This flexible charging solution features multiple connectivity options and ISO 15118 hardware readiness and is suitable for applications where a credit card reader and/or Tap to Pay are required.
J1772
Models
| Product | Series 8 (80A) |
|---|---|
| Number of Ports | Two |
| Output Current | Configurable up to 80A per port |
| Output Power | Up to 19.2kW (@240VAC) or 16.64kW (@208VAC) max per port |
| Charging Connector | J1772 or NACS |
| Input/Voltage | 208/240VAC |
| Connectivity | Cellular 4G LTE, Wi-Fi, Ethernet |
| Backend Protocol | OCPP 1.6J compliant |
| Authentication | RFID: ISO14443 Type A & B, MiFare, Felica, ISO15693, NFC: Apple VAS, NEMA, Google |
| Smart Tap, Plug and Charge | ISO 15118 hardware-ready |
| Payment | RFID card, Mobile app, Optional: Apple/Google Pay, Contactless/Magnetic/EMV Credit Card |
Product Documentation
Product Sheets
Product Manual
Charging your business or fleet
Convenient
Payment options include Google Pay, Apple Pay, RFID cards, credit cards, and Tap to Pay - offering customers multiple ways to start a charge.
Practical
Dual-port design for two vehicles to simultaneously charge.
Powerful
Configurable up to 80A Max per port to meet different customer needs.

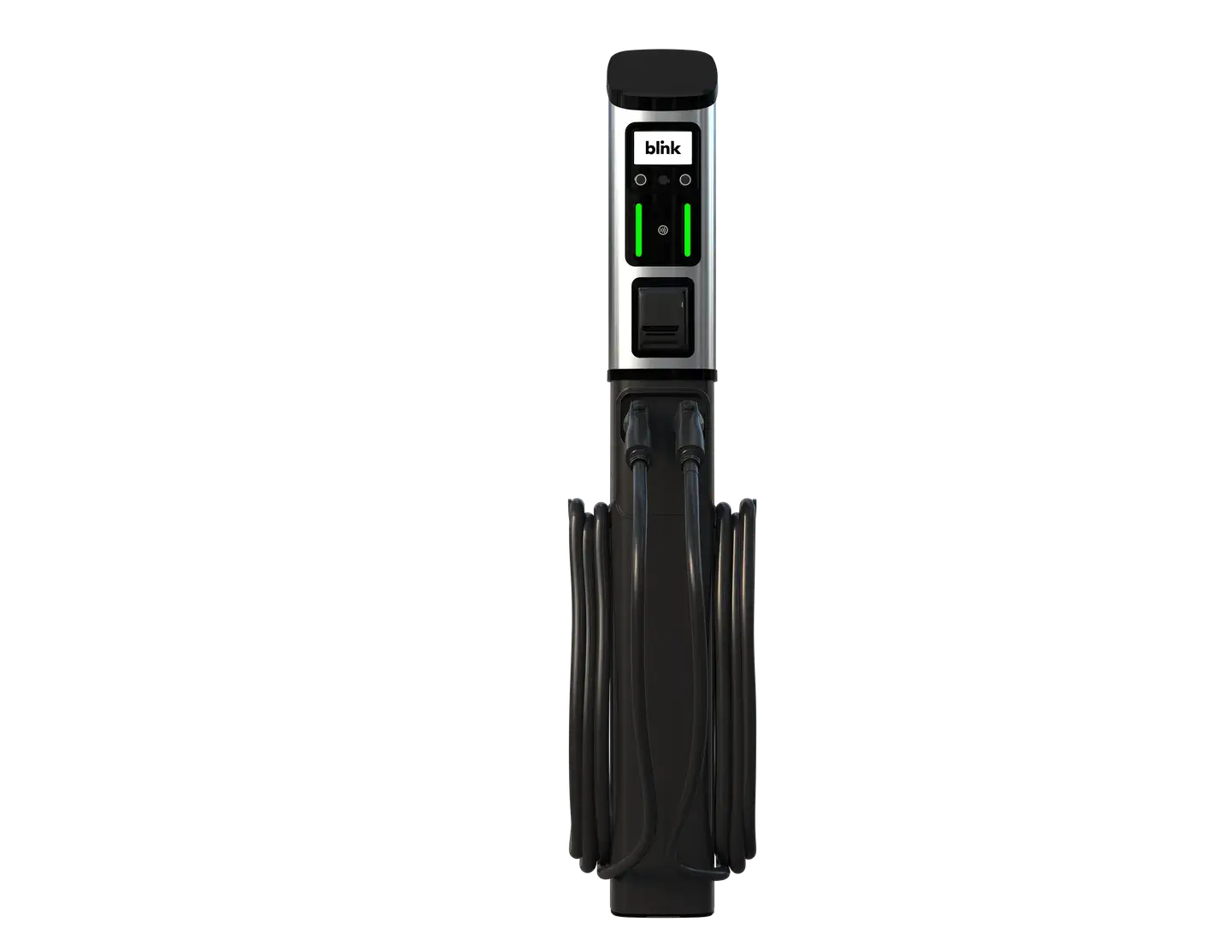

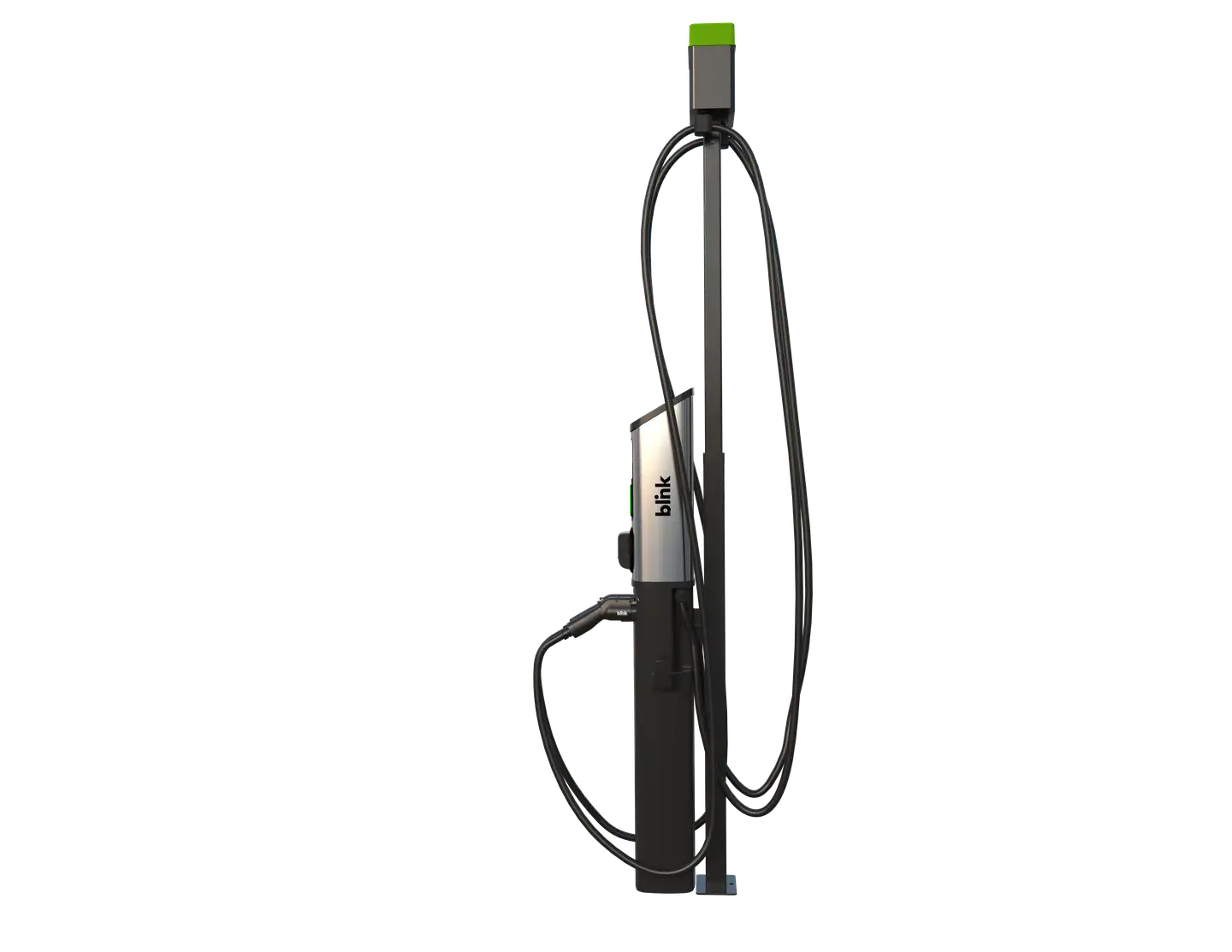

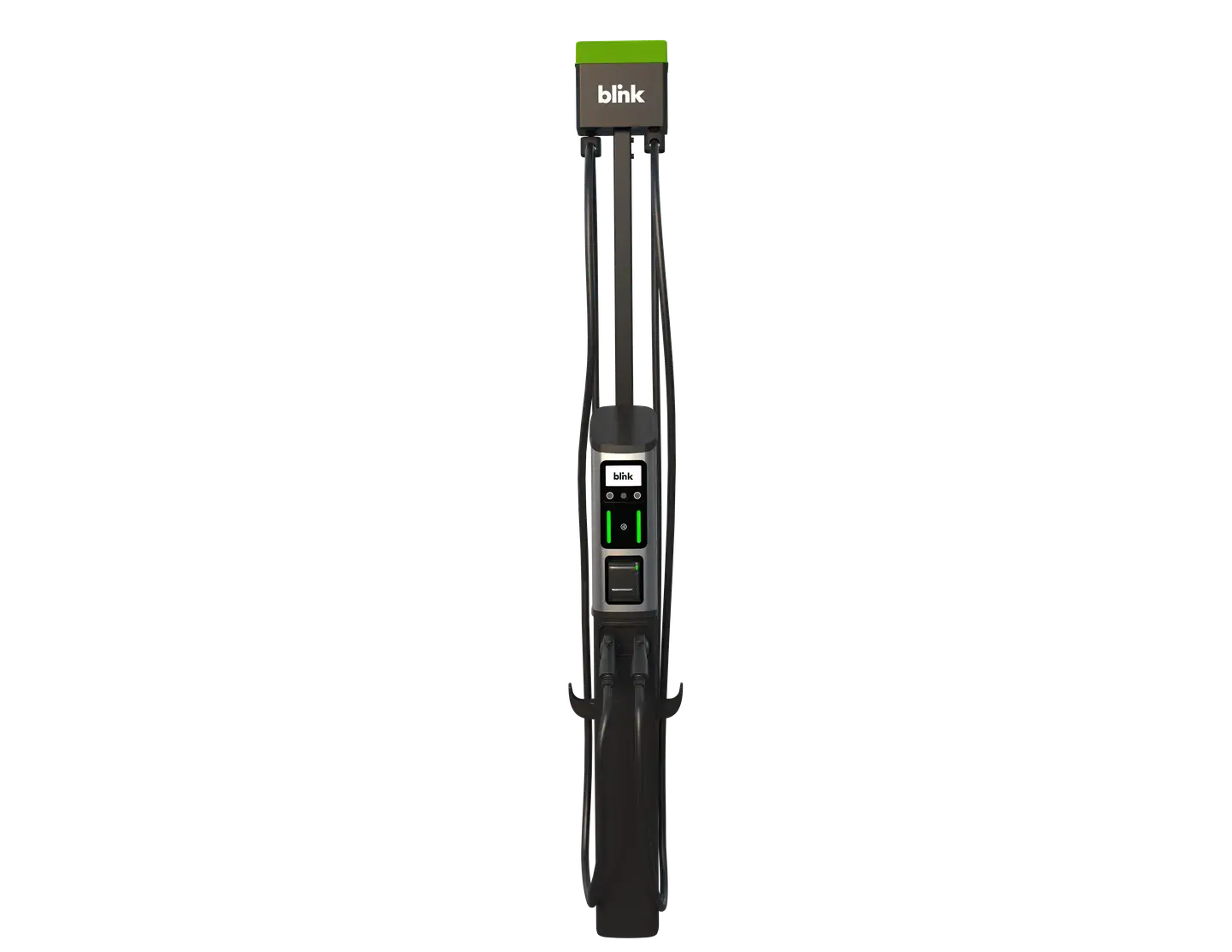

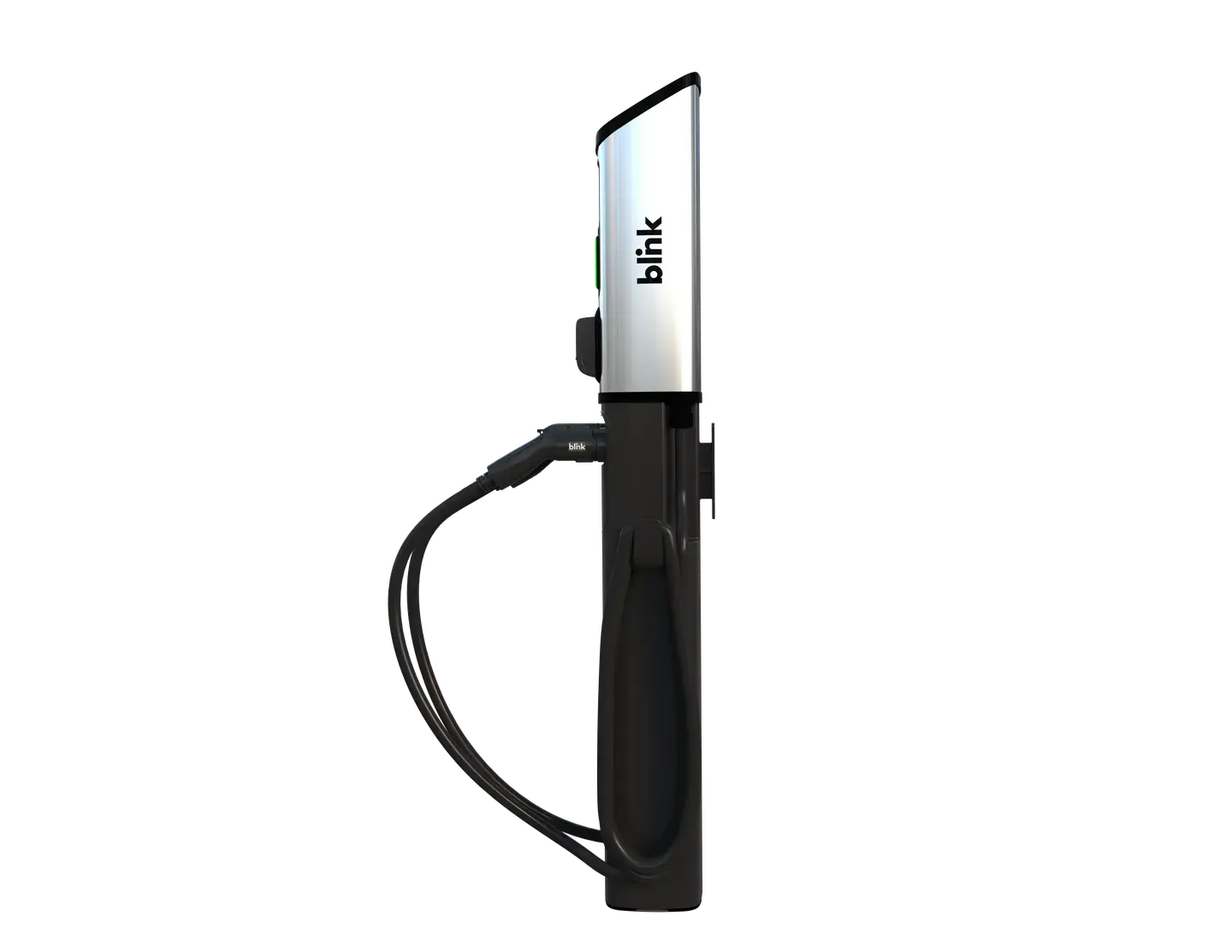

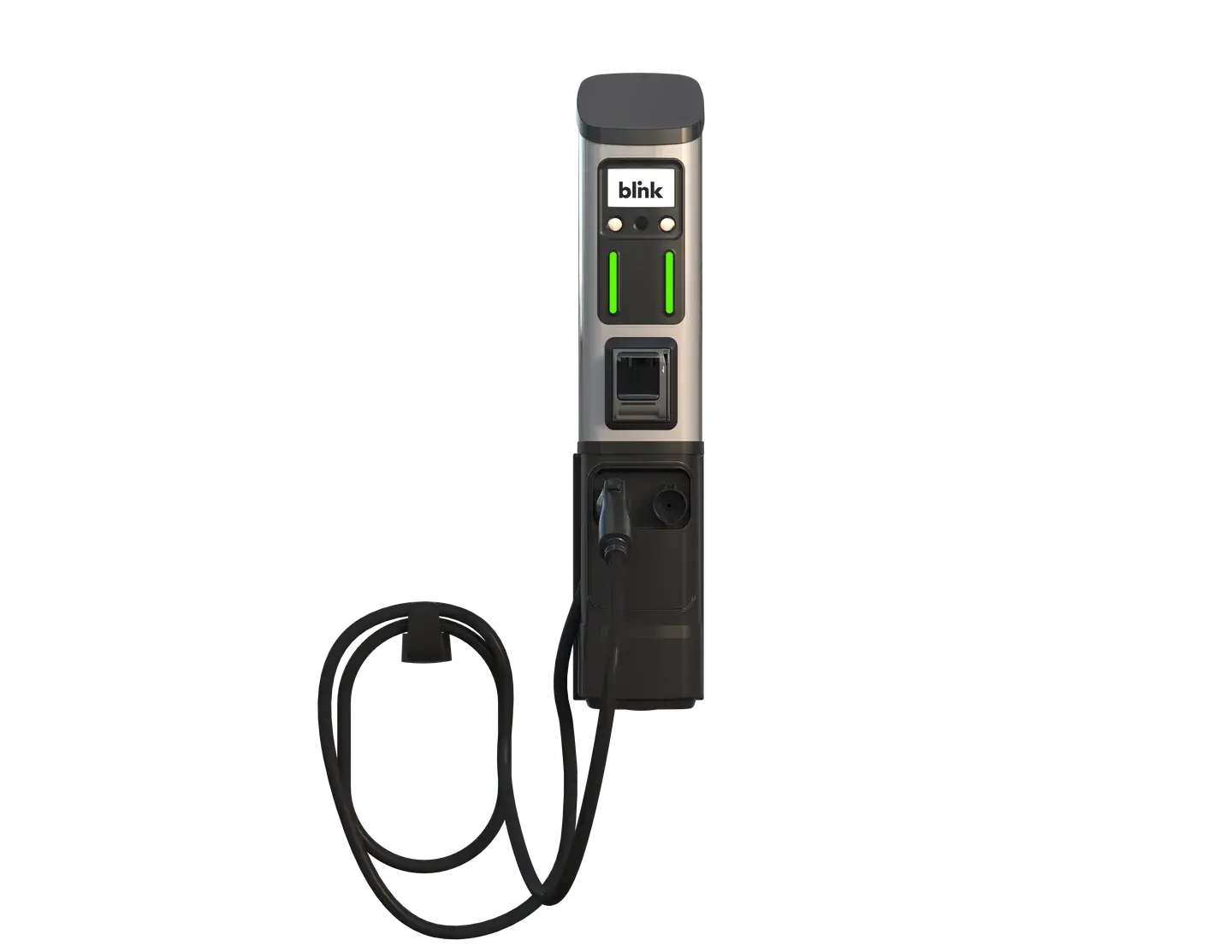

BLINK SERIES 8 (ISO MODEL)
Convenient Level 2 EV Charging
The Blink Series 8 charging stations feature an external physical credit card reader. Dual charging ports allow for two vehicles to charge simultaneously with a dedicated 80 Amps of power each, or lower the cost of installation by sharing the electrical load within the charger. The Blink Series 8 charger can be mounted on a wall or placed on a pedestal – making them easy to position between parking spaces or in front of retail locations. When connected to the Blink Network over 4G LTE, the Blink Series 8 charging station is even more comprehensive featuring dynamic pricing configurations, remote monitoring, and 24/7 customer support.
"Our next-gen technologies empower drivers and businesses via a seamless, efficient, and affordable charging experience, making charging – and switching to an EV in general – easier than ever before.”
Brendan Jones
CEO of Blink Charging
Ready to design your EV Charging solution?
Learn how the Blink Series 8 Level 2 EV charger can attract new customers that stay longer and visit your business more frequently.
